Standard Dilators

AT A GLANCE

  • Tapered tip eases insertion
  • Custom engineered in sizes 4F to 22F; custom lengths available upon request

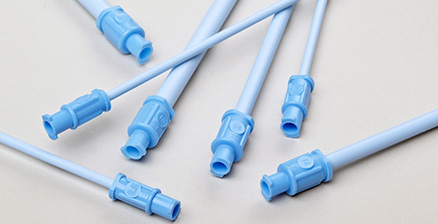

Well-Designed Dilators with Outstanding Features

  • Teleflex Medical OEM offers a standard range of vessel dilators to facilitate placement of a wide range of catheters.
  • Tapered tip eases insertion.
  • Size is molded into hub for easy identification.
  • Luer lock hub for optional syringe attachment.
  • Standard sheath usable length: 7.875″ (20.0cm), additional lengths can be custom-configured.

Materials

  • Tubing:
    • PP (Polypropylene)
    • PE (Polyethylene)
    • FEP (Fluorinated Ethylene Propylene)
  • Filler: Barium Sulfate
  • Hub: PP (Polypropylene)

Dilator Sizes

Dilator Size Dilator O.D.
4F .052″ (1.32mm)
5F .066″ (1.68mm)
6F .079″ (2.01mm)
7F .092″ (2.34mm)
8F .105″ (2.67mm)
9F .118″ (3.00mm)
10F .131″ (3.33mm)
10.5F .137″ (3.48mm)
11F .144″ (3.66mm)
12F .157″ (3.99mm)
12.5F .162″ (4.11mm)
13F .170″ (4.32mm)
14F .184″ (4.67mm)
15F .196″ (4.98mm)
16F .210″ (5.33mm)
18F .236″ (5.99mm)
20F .264″ (6.71mm)
22F .289″ (7.38mm)

Dimensional criteria for reference only.

Customization Is What We Are All About

  • Our dilators can be custom-configured, such as usable length, to meet the requirements of your unique application.
  • Teleflex Medical OEM is your single source solution for device development and manufacturing. Our extensive, vertically integrated capabilities include concept development, engineering, regulatory affairs, material selection and formulation, prototyping, testing and validation, manufacturing, finishing operations, assembly and packaging. READ MORE
