INTRODUCER NEEDLES

AT A GLANCE

  • Our one-step process eliminates the need for etching
  • EFEP can be co-extruded as an outer layer, tube liner, or laminated over coil/braid reinforced assemblies

Well-Designed Introducer Needles with Outstanding Features

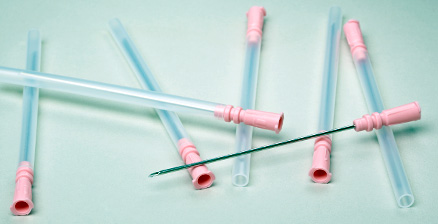

  • Standard introducer needles are available with a molded hub for easy access and introduction of guidewires.
  • Supplied with cover tube to protect needle prior to use.
  • Usable length: 2.75″ (6.99cm), other lengths are available on a custom basis.
  • Needle bevel: Standard “B” type bevel

Guide to Available Needle Gauges

Gauge Color Code Needle I.D. (min)
20TW Yellow 0.025″ (0.64mm)
18TW Pink 0.041″ (1.04mm)
16TW Purple 0.052″ (1.32mm)
14TW Light Green 0.065″ (1.65mm)

Customization Is What We Are All About

  • Our introducer needles can be custom-configured, such as the length, to meet the requirements of your unique application.
  • Teleflex Medical OEM is your single source solution for product development and manufacturing Our extensive, vertically integrated capabilities include concept development, engineering, regulatory affairs, material selection, prototyping, testing and validation, manufacturing, finishing operations, assembly and packaging.
