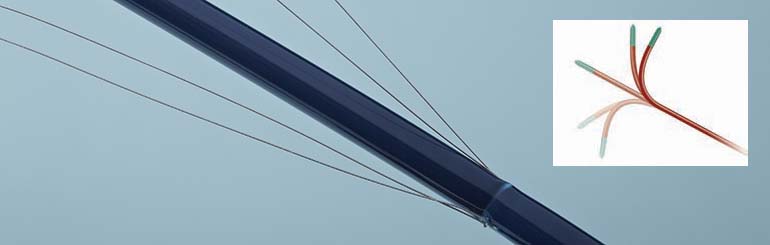

CATHETERS WITH STEERABLE AND DEFLECTABLE CAPABILITIES

AT A GLANCE

• Customized, multiple steerable elements add enhanced directional capabilities to your catheter design
• Uni-directional, bi-directional, or multi-directional motion

Partner with Us to Add Maneuverability to Your Catheter Design

At Teleflex Medical OEM, we are ready to work with you to enhance the performance of your catheter design. Our unique set of capabilities allows us to customize your design with steerable and deflectable elements while maintaining dimensional stability, pushability, and kink resistance.

Capabilities:

• Add steering or deflection to your catheter design for another level of control to the shaft
• We can provide maximum configurability from small deflection of the tip to full motion
• Customized handles for multidirectional devices
• Steering and deflection is also available for introducers

Applications:

• Diagnostic, therapeutic, and interventional applications, including vessel access and delivery, electrophysiology, ablation for artrial fibrillation, endoscopy, and more. Contact one of our sales representatives to discuss your unique application

Materials:
Shaft materials:

• Liners: PTFE, FEP, HDPE, nylon, and other thermoplastics and fluoropolymers
• Jackets: Pebax^®, PUR, nylon, or other materials
• Multi-durometers from 25D Pebax^® to 80D nylon

Reinforcement materials:

• Round and flat stainless steel wire, Nitinol, and non-metallic materials

Pull wires:

• Stainless steel
• Liquid crystal polymer fiber (i.e. Vectran™)

Reinforcements:

• Braid:
  • Patterns (standard, diamond, and half load)
• Variable PPI longitudinal wires and high tensile, non-metallic fibers
• Coil:
  • Standard or variable pitch (continuous)

Dimensional Information:

• Shaft diameters from 1.1F to 35F
• Tolerances start at +/- 0.001”, depending on size and technical requirements

Radiopacity Options:

• Encapsulated marker bands: Gold, platinum, iridium, and other materials are available
• High loading of conventional radiopaque fillers:
  • Tungsten (bilayer, trilayer) (W)
  • Barium sulfate (BaSO4)
  • Bismuth trioxide (Bi203)
  • Bismuth subcarbonate (BiCO3)

Finishing Operations and Sterilization:

• Laser cutting for both reinforced (braided, coiled) or non-reinforced catheters
• Coating (hydrophilic, hydrophobic)
• Flaring
• Tipping
• Insert molding
• Custom hubs
• Sterilization (Gamma, E-beam, or EtO)

Customization Is What We Are All About

Teleflex Medical OEM is your single source solution for product development and manufacturing. Our extensive, vertically integrated capabilities include concept development, engineering, design for manufacturability, regulatory services, material selection, balloon blowing, prototyping, testing and validation, manufacturing, finishing operations, assembly, and packaging.
